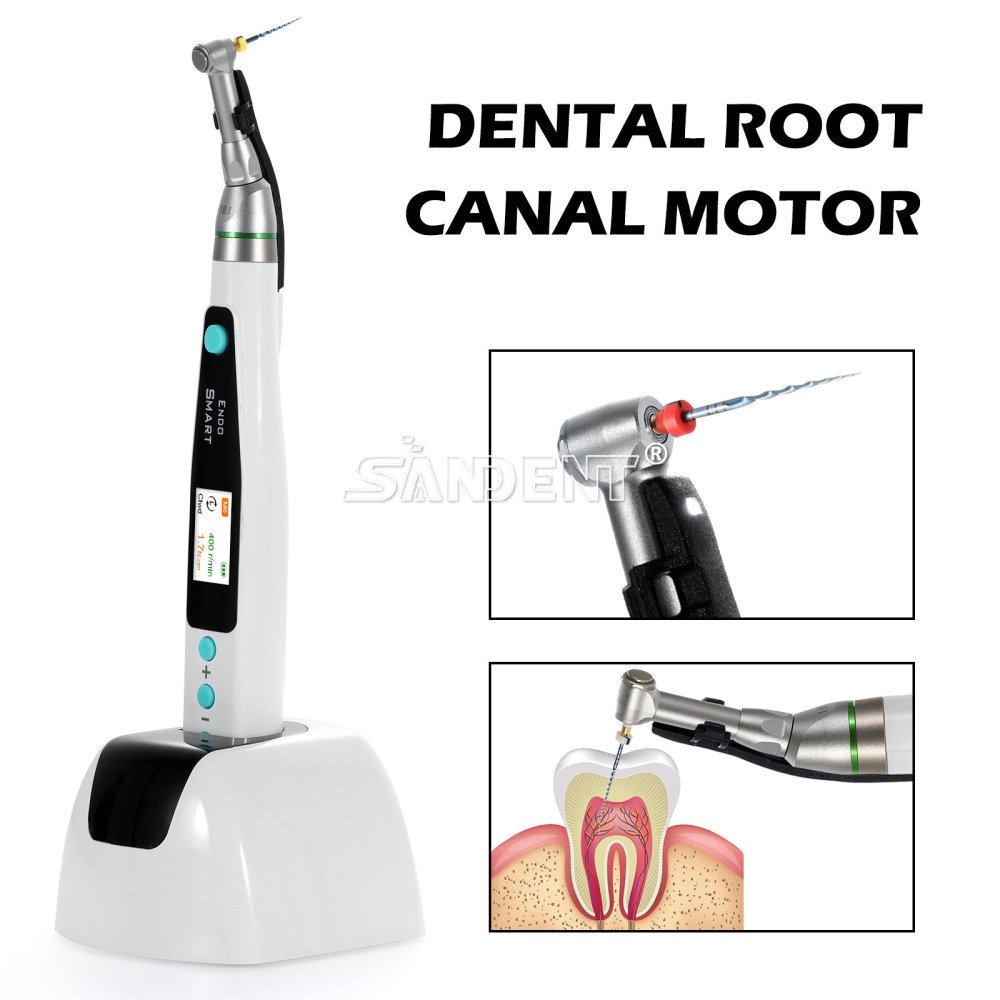

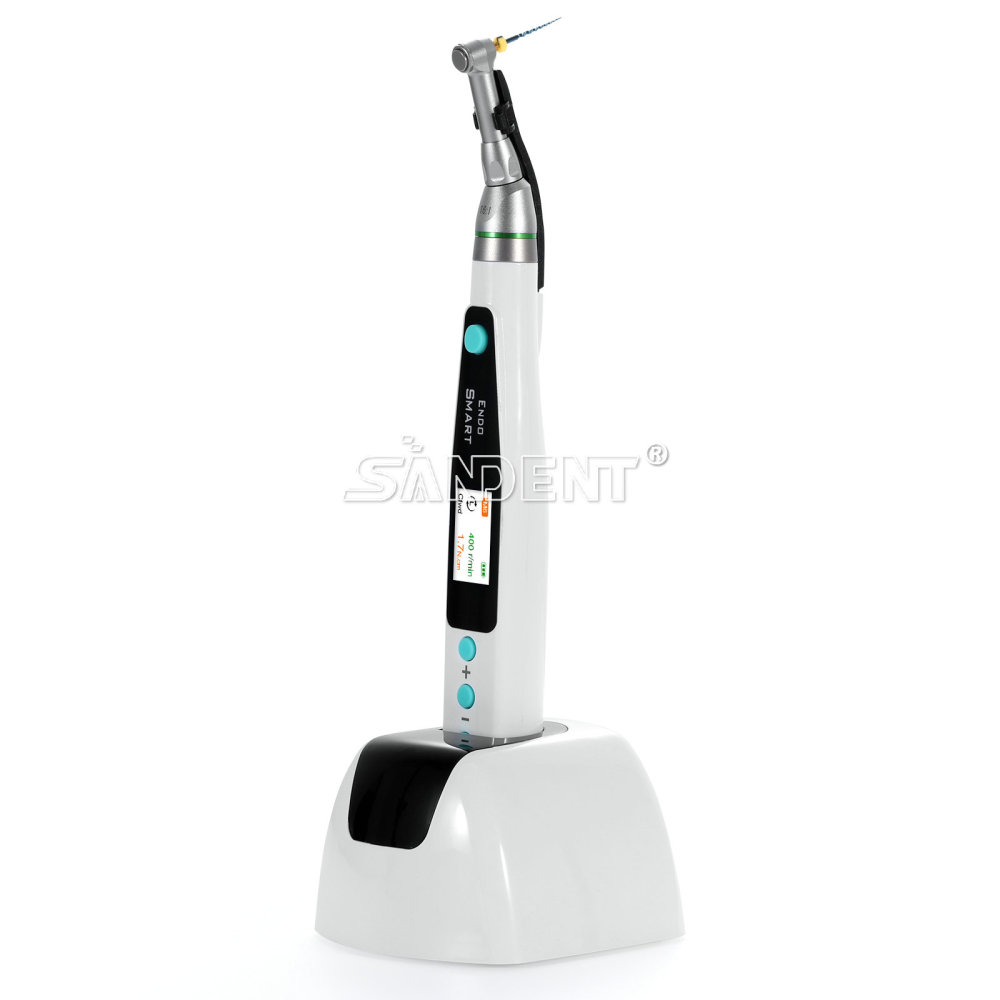

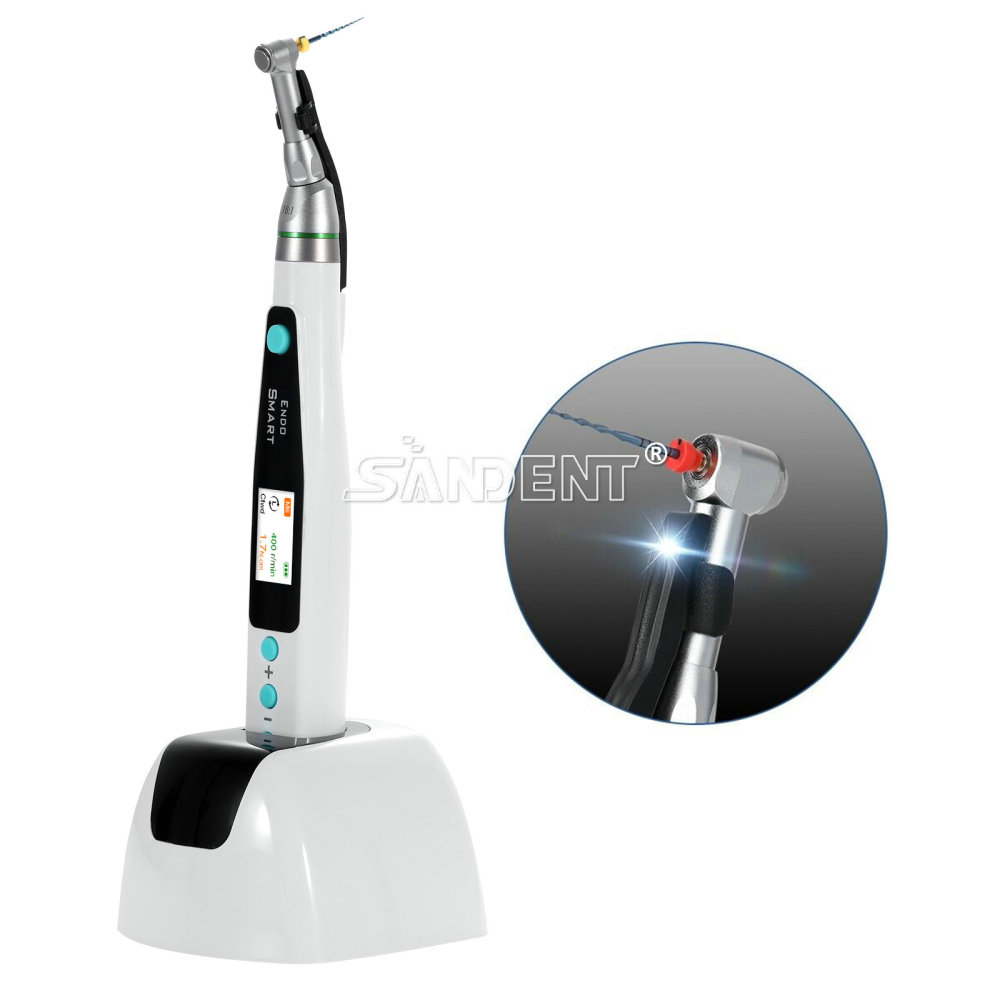

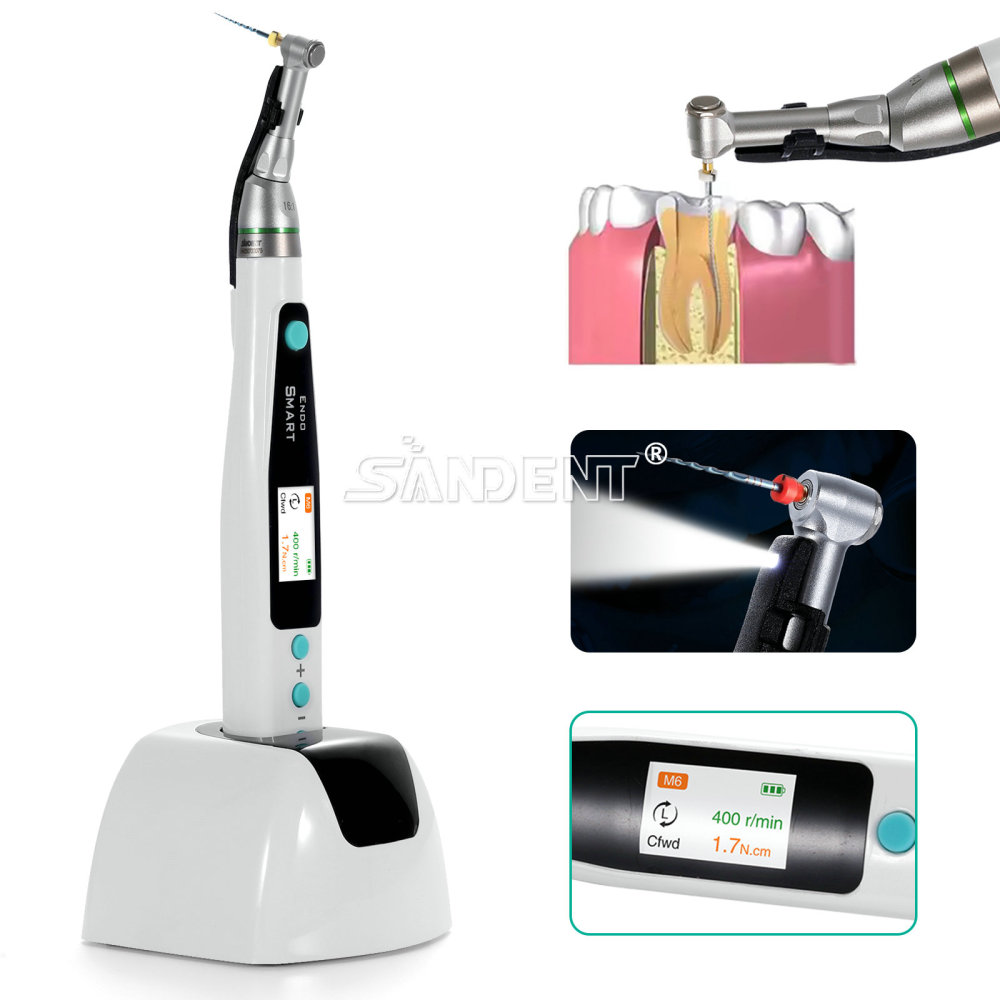

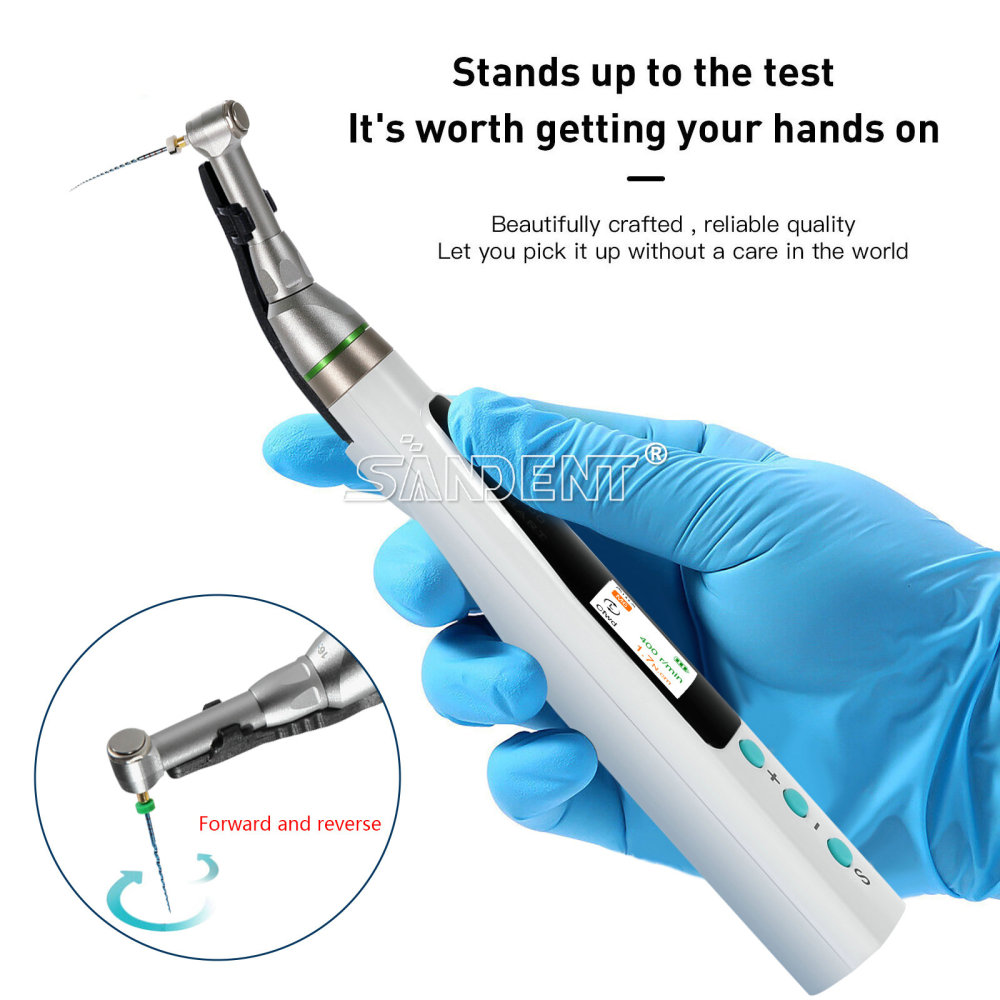

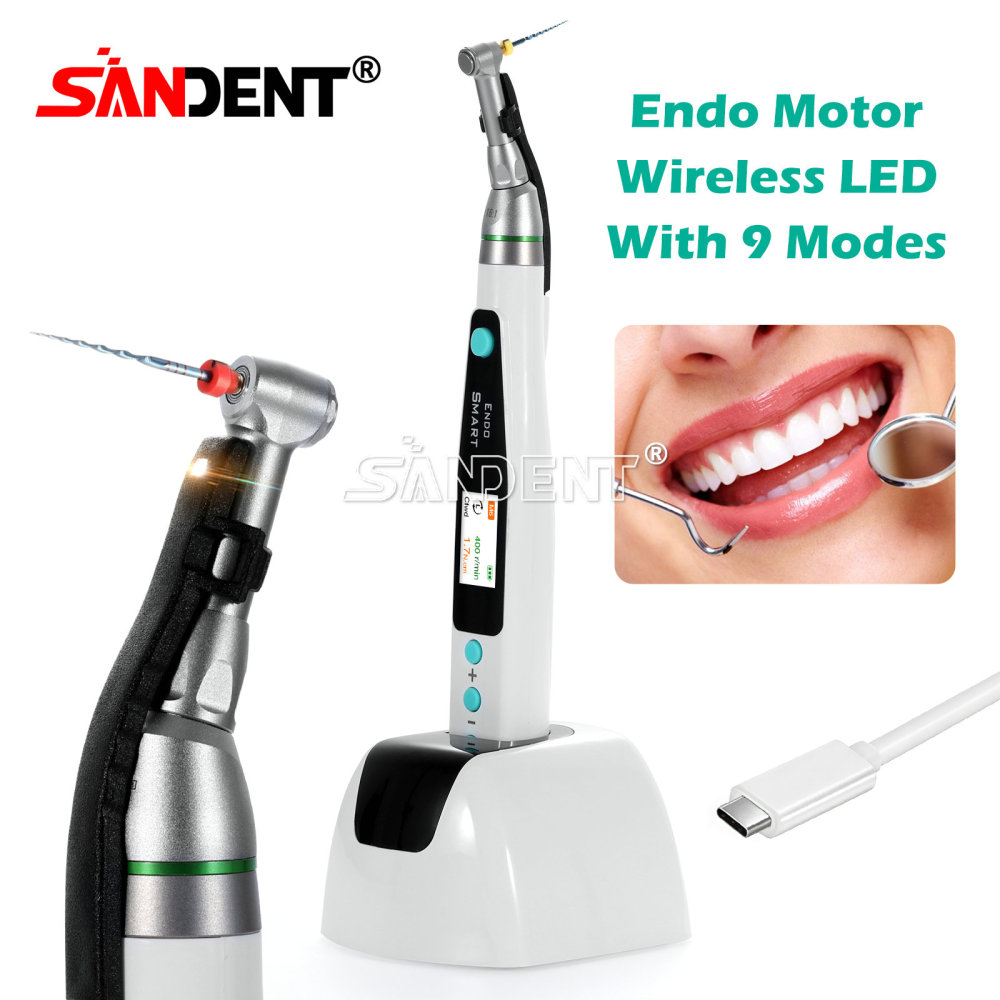

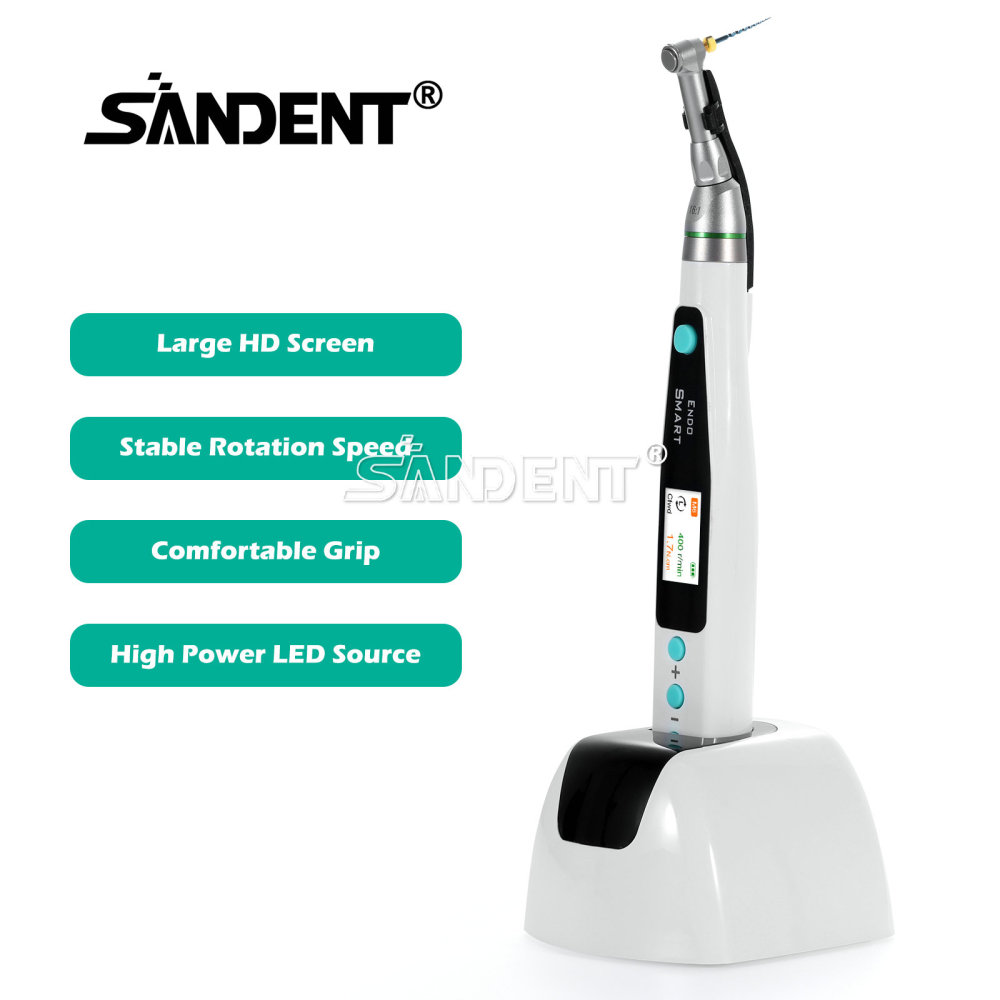

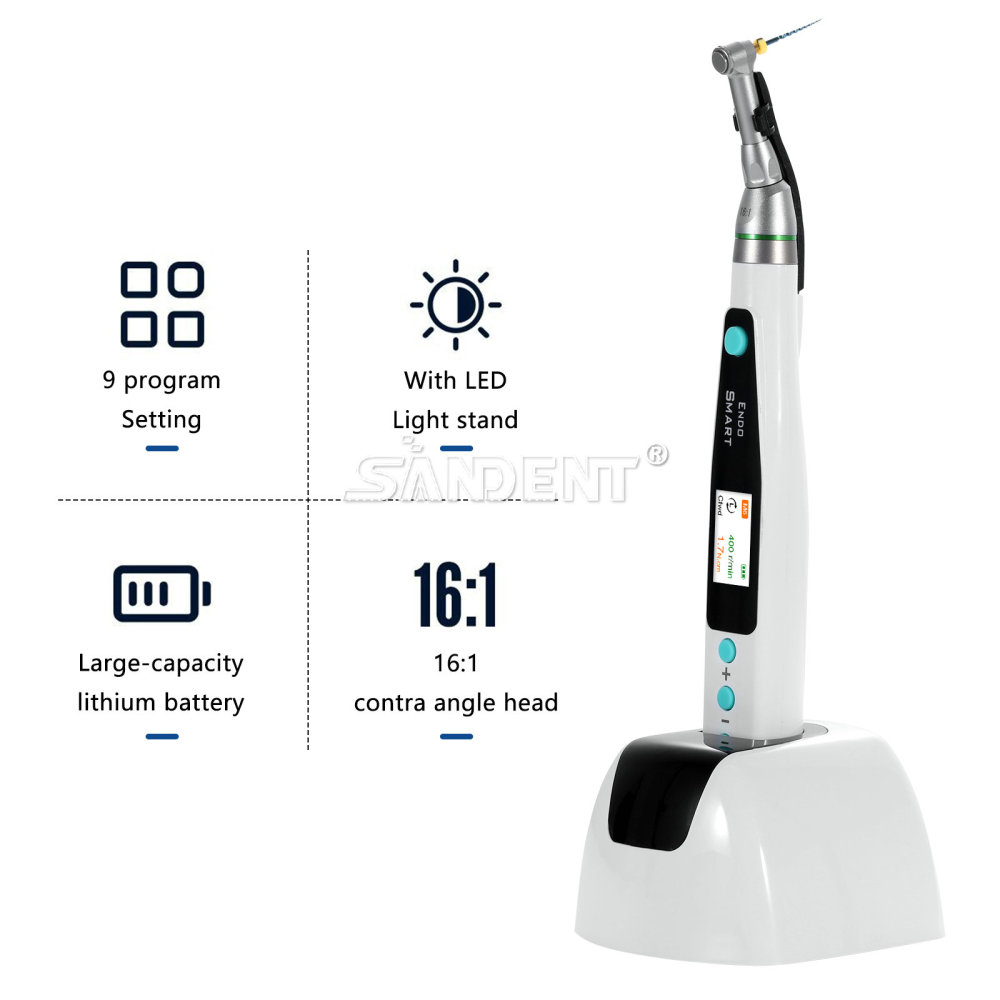

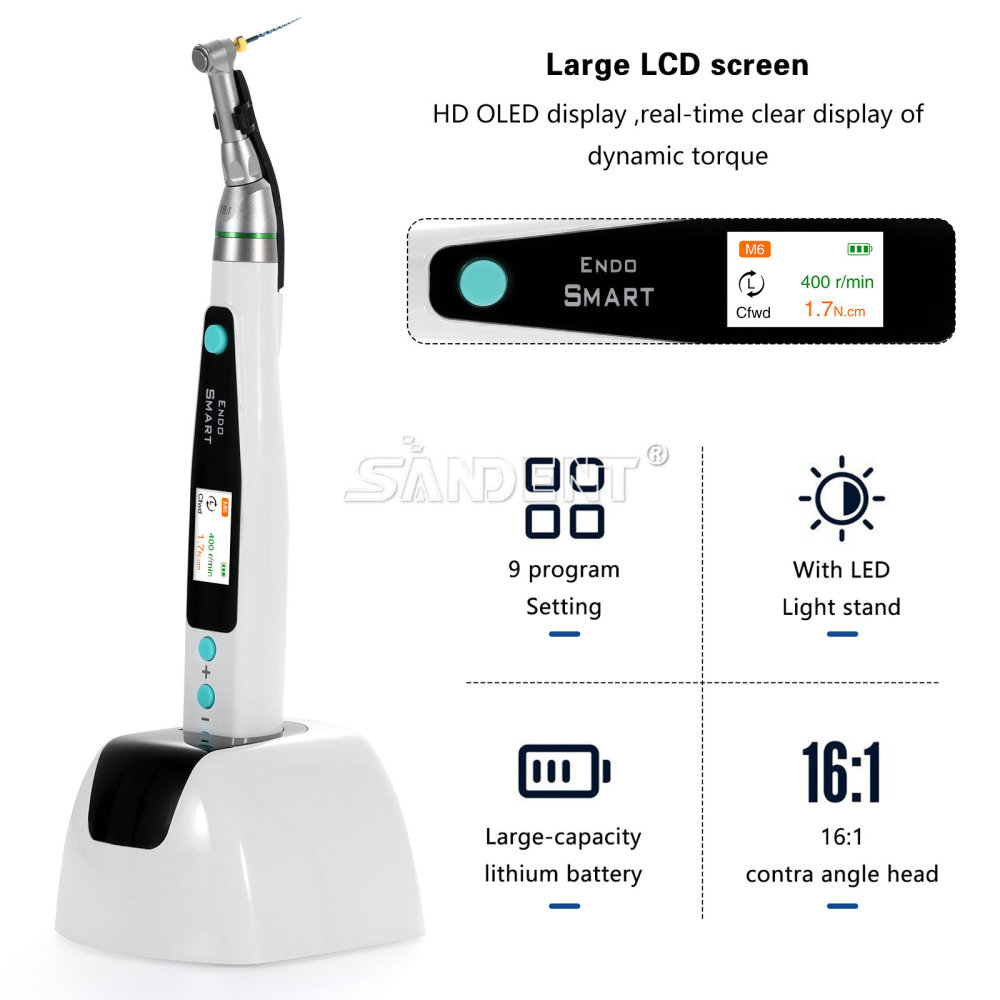

SANDENT Dental Endodontic Cordless LED Endo Motor 16:1 Contra Angle Handpiece

Basic information

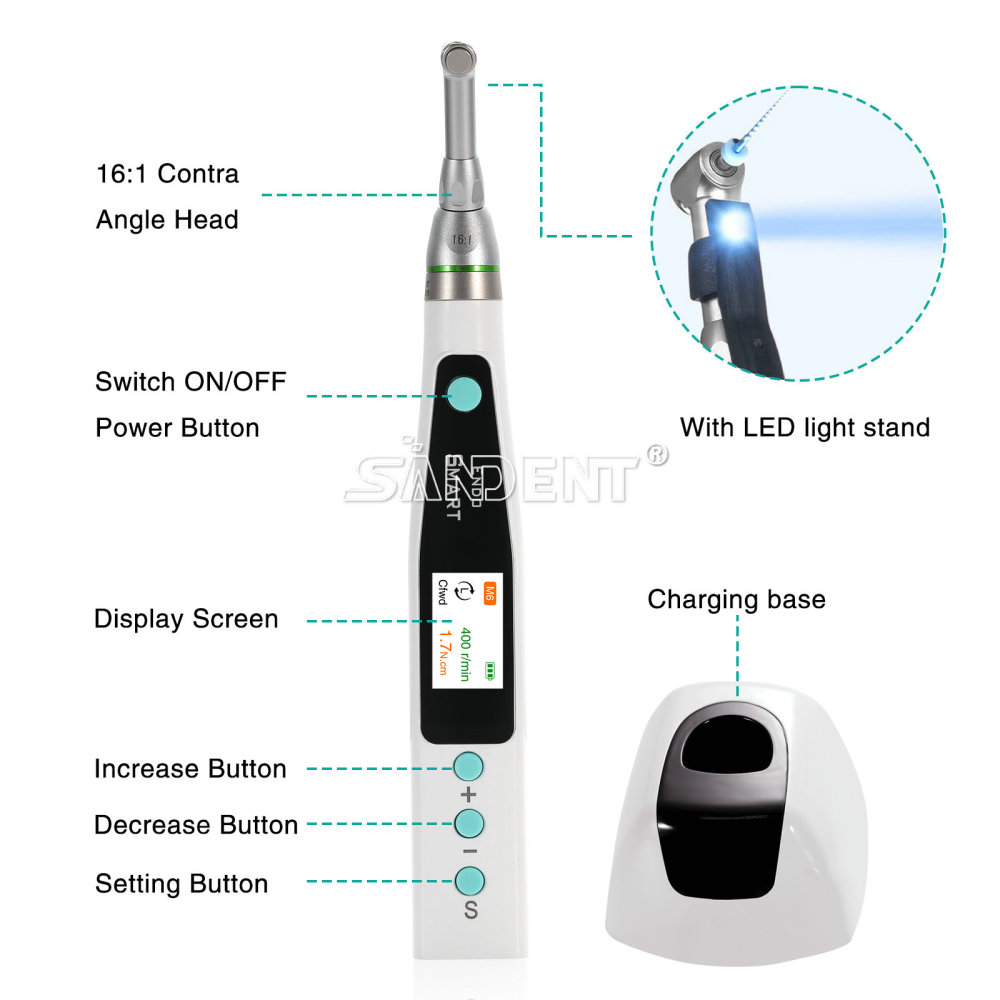

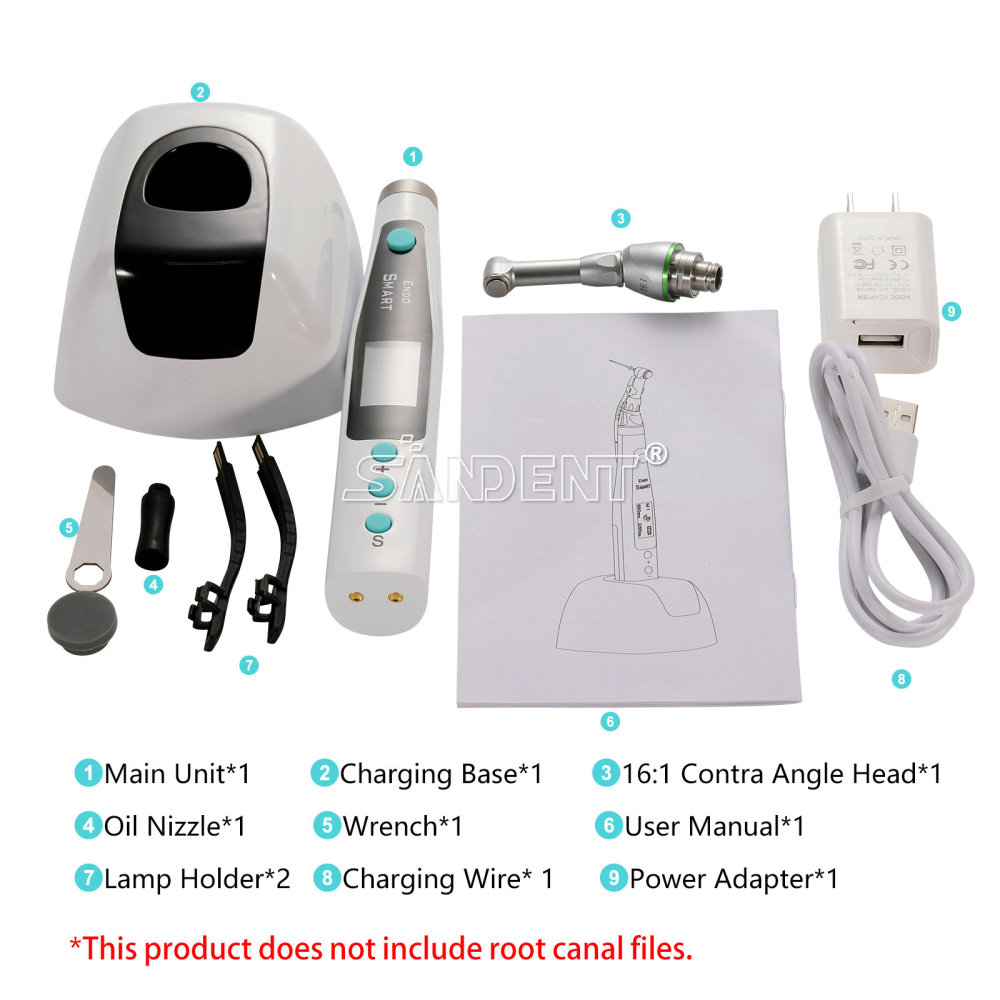

Main structure:consists of control part,motor,Contra Angle head,power adapter and charging base.

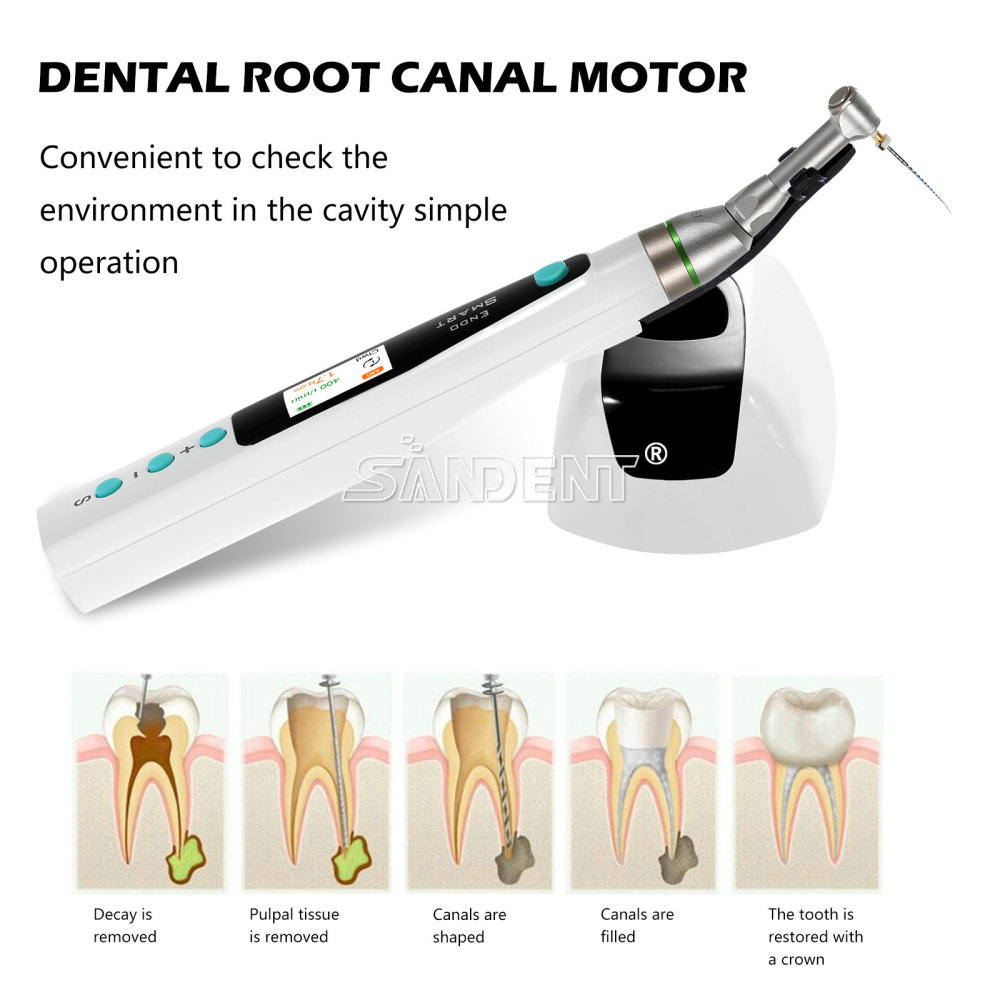

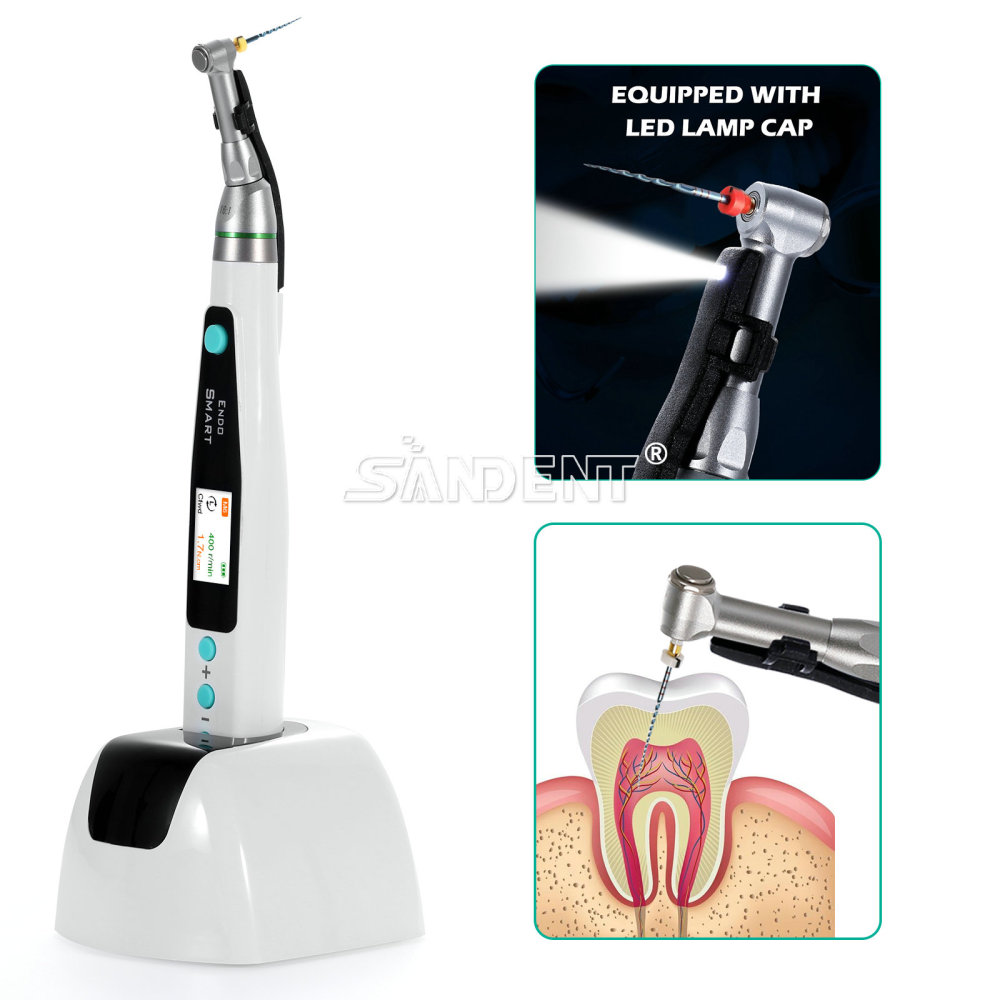

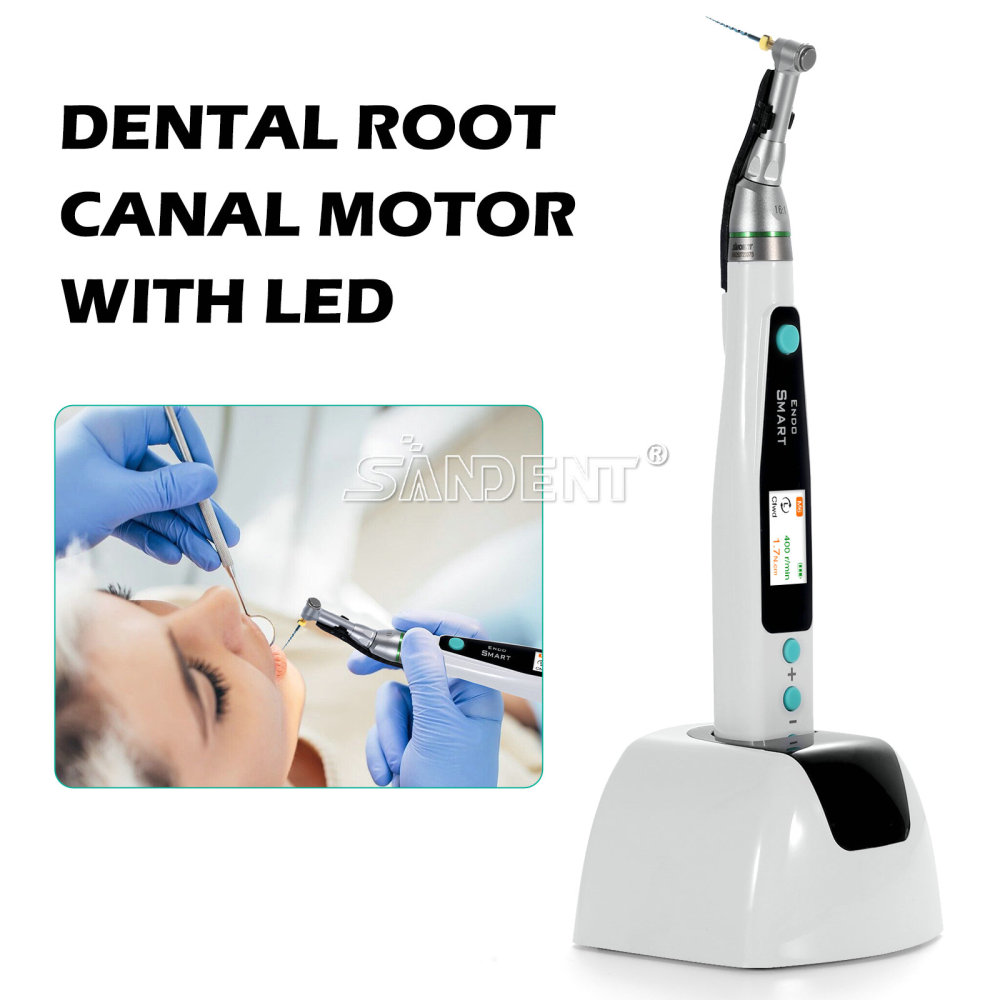

Application:Used in root canal therapy,root canal preparation stage shaping and cleaning,the product does not contain the root tip positioning function. Electrical safety classification:Class Il,internal power supply:

Has a type B application section

Product Code:XLY-Q200

Software release:LX037-GZ-101.1.0.0-170324

Technical parameters

Type B application section

Shell protection:IPX0

Classification according to the degree of safety for use with flammable anesthetic gases mixed with air and nitrous oxide:Non-APIAPG type.

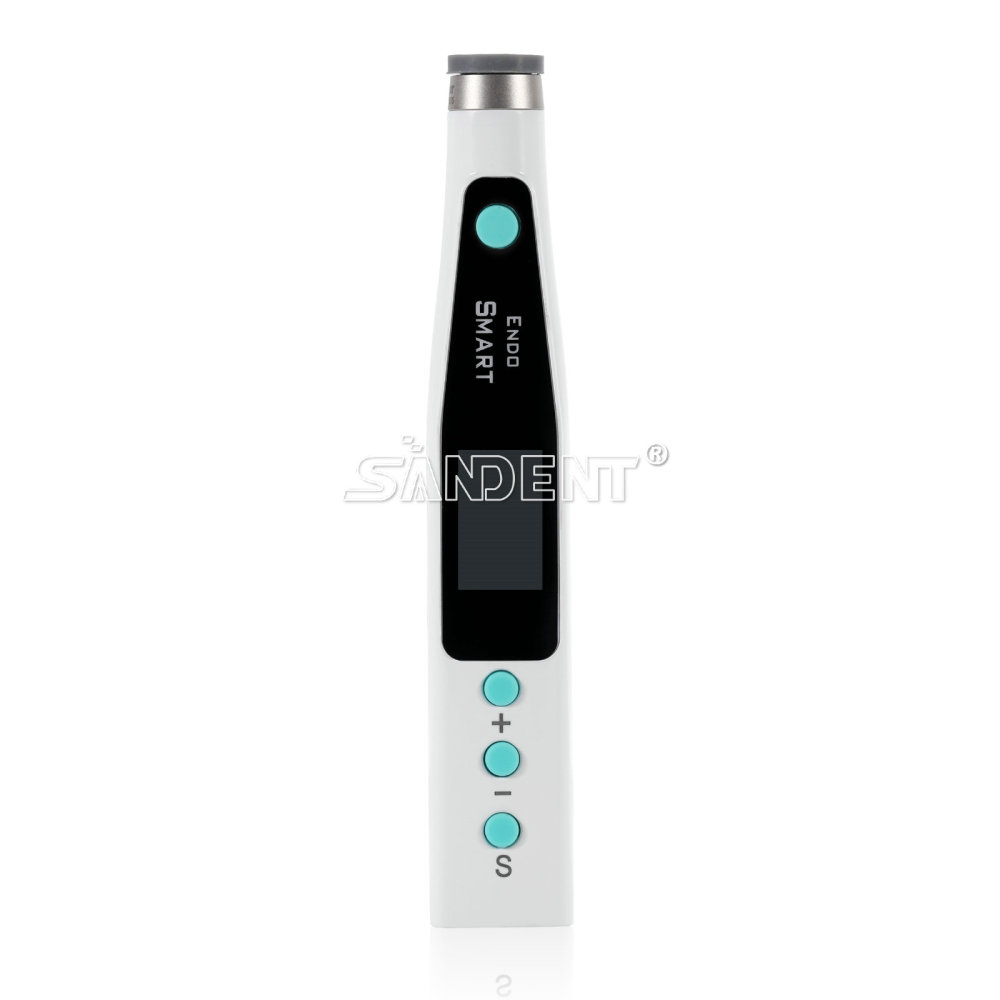

*Body

Size：--------------------------Diameter,27×215mm

Classification：--------------------Common,Type B

Running mode:--------------------Continuous running Standard operating voltage:---------d.c.3.7V

*Power adapter

Input voltage: 100V-240V～50/60Hz

Output voltage:d.c.5V,1A

Specifications:GC09-050100-5A

*Battery

Type:Lithiumion battery Capacity:800mAh

Charging voltage:3.7V

Type specification:INR 14500

*Program parameter

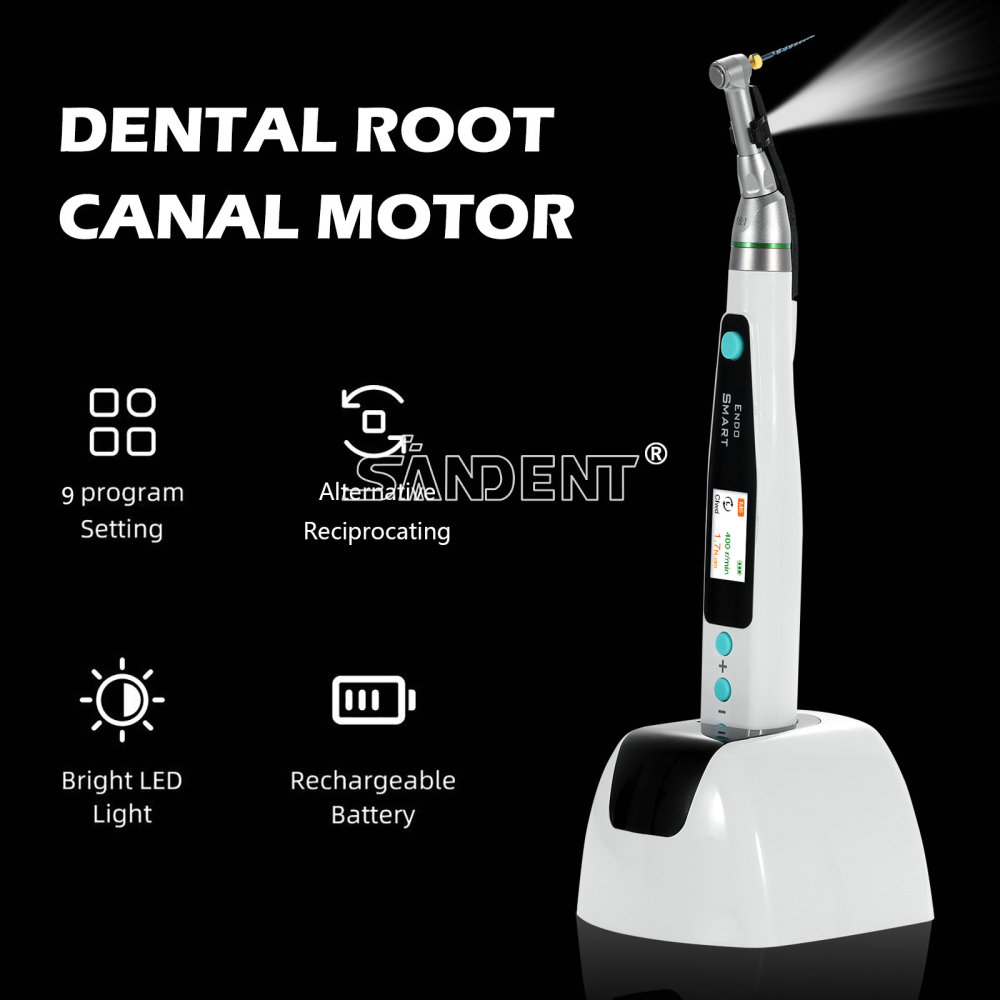

Procedure: 9 kinds

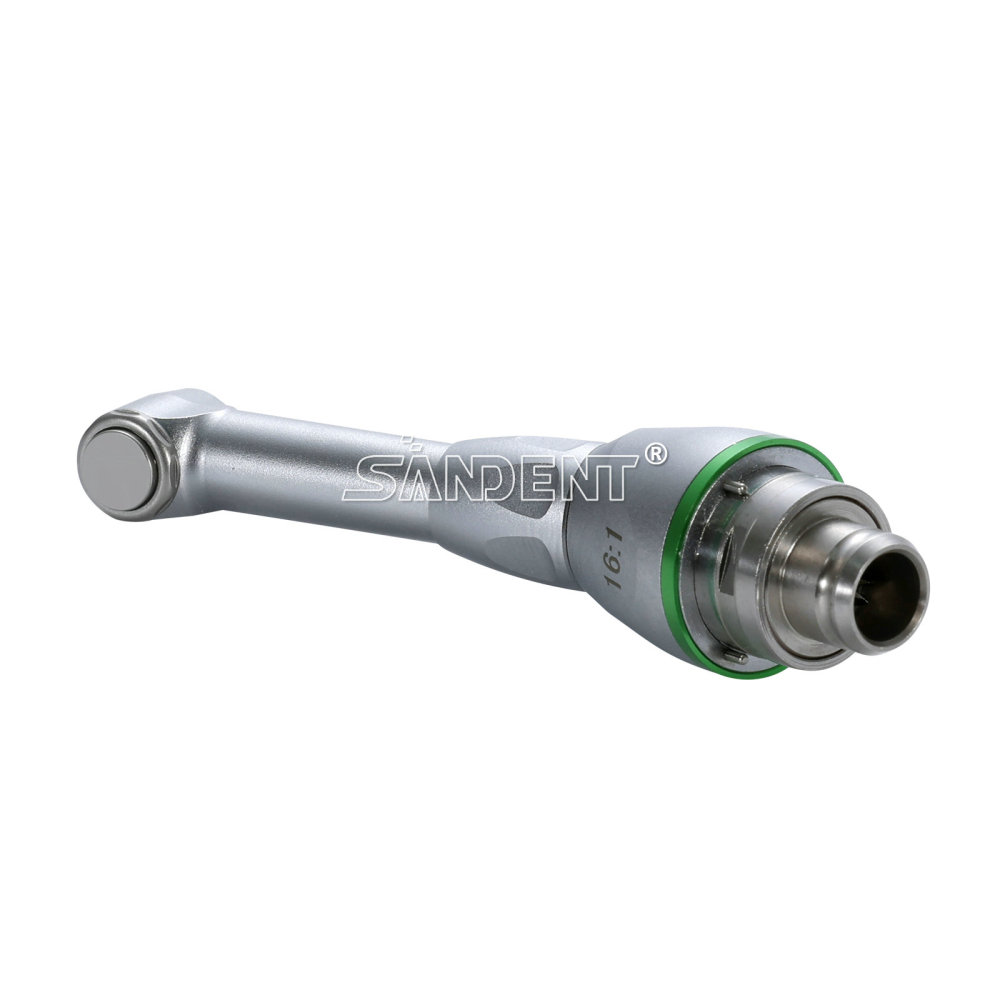

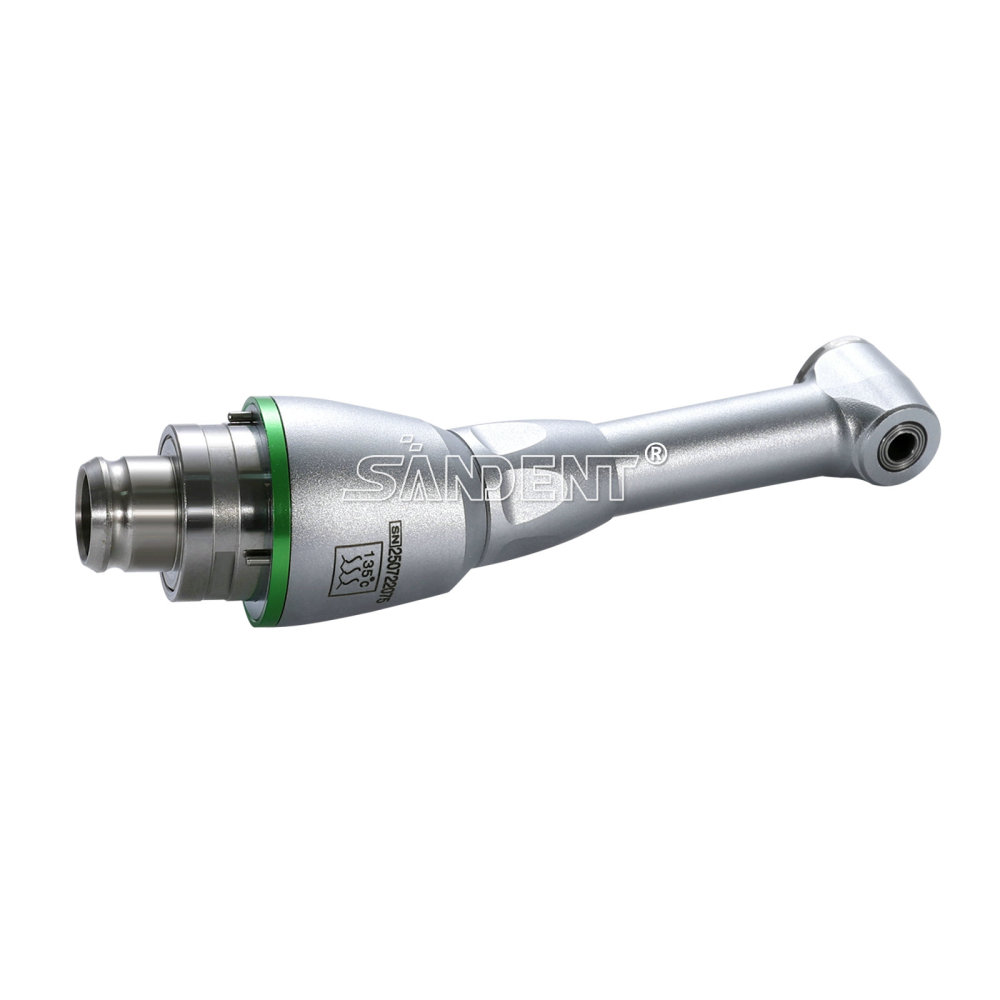

Working Mode: 4 kinds Standard head:16:1

Net weight: 265g

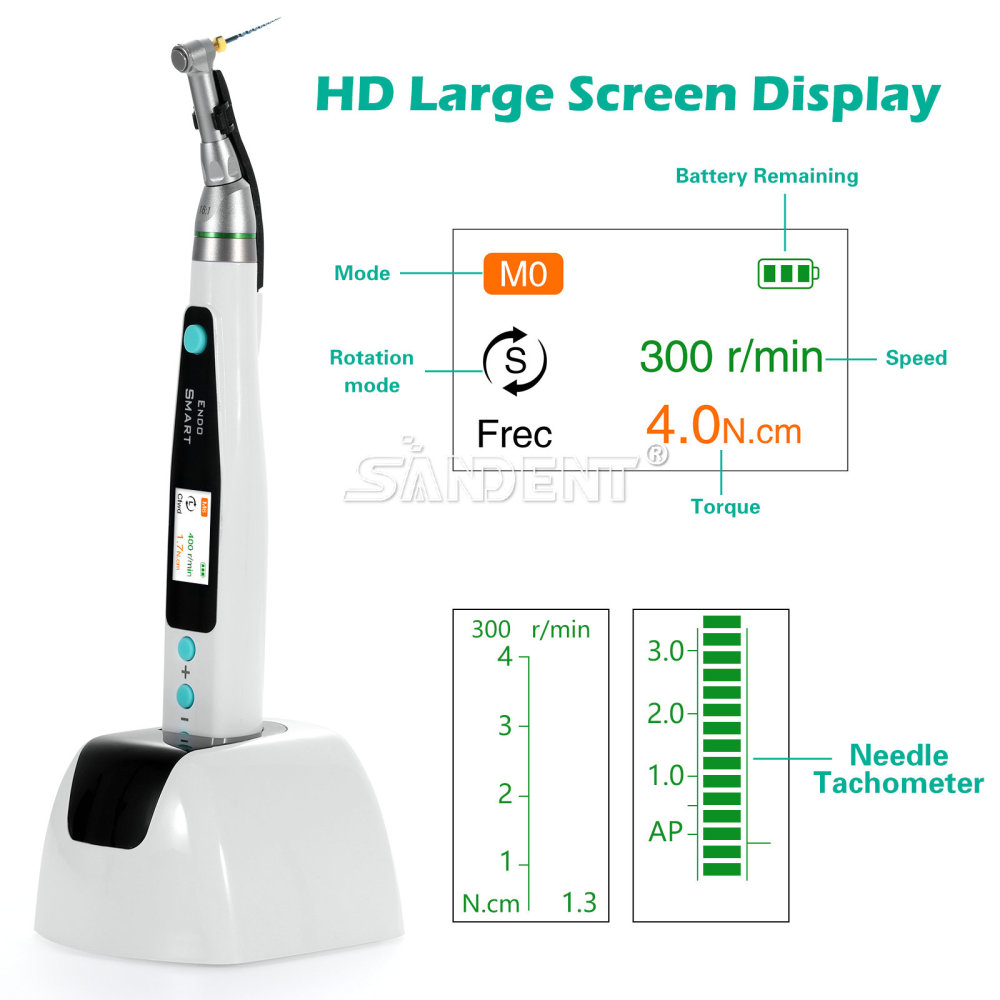

Rotate speed: 140-550 r/min Torque:0.3-4.0N.cm

*Transportation and storage environment

a)Environment temperature range:-20℃~+55℃;

b)Relative humidity range:≤80%;

c)Atmospheric pressure range:70kPa~106kPa;

*Operating environment

a)Environment temperature range:5℃~40℃;

b)Relative humidity range:≤80%;

c)Atmospheric pressure range:70 kPa~106kPa;

d)power supply:d.c.3.7V(-10%~+5%)

e)Avoid using this product in an environment with electromagnetic interference(such as near a microwave oven)

f)The charger of this product shall meet the requirements of GB9706.1-2007.
